| Prime Power (kVA/kW) | 30 / 24 |
| Standby Power (kVA/kW) | 33 / 26.4 |
| Voltage (V) | 400 / 230 |
| Frequency (Hz) | 50 |
Generator power is based on power factor of 0.8
Prime Power: Variable load. Unlimited hours usage with an average load factor of 80% of the published prime powering over each 24 hour period. A 10% overload is available for 1 hour in every 12 hours.
| Manufacturer | Kubota (Japan) |
| Model | V3300-E2-BG2 |
| Fuel | Diesel |
| Exhaust Emission | – |
| Cooling System | Water |
| Nominal Operating Speed (rpm) | 1500 |
| Displacement (L) | 3.318 |
| Number of cylinders and disposition | 4, inline |
| Aspiration | Naturally Aspirated |
| Power (Continuous) kW (HP) | 25 (33.5) |
| Power (Stand-by) kW (HP) | 27.5 (36.9) |
| Fuel Consumption at 75% PRP (L/h) | 5.37 |
| Fuel Consumption at 100% PRP – g/kWh / (L/h) | 7.15 |
| Governor type | Mechanical |
| Compression ratio | 22.6 |
| Bore & Stroke (mm) | 98 × 110 |
| Electrical system (V) | 12 |
| Lubrication capacity (L) | 13.2 |
| Coolant capacity (L) | 13.2 |
| Open type | Sound proof | |
| Length | 1800 mm | 2250 mm |
| Width | 1000 mm | 1000 mm |
| Height | 1150 mm | 1600 mm |
| Weight (Dry) | 710kg | 1180 mm |
| Fuel tank capacity | 160L | 160L |
| Alternator manufacturer | Leroy-Somer |
| Model | TAL 042 C |
| Power | 32 kVA |
| Insulation class | H |
| Protection grade | IP 23 |
| Voltage regulation system | Electronic, ± 1% |
| Pitch | Two Third |
| Number of Bearings | 1 |
| Number of Leads | 12 |
| Overload Long Term | 110%, 1 hr in 6 |
| Overload 20 seconds | >300% |
| No. of phases | 3 |
| No. of poles | 4 |
| Controller Make/Model | DeepSea PLC DSE4520 |
| Engine protections |
• Oil pressure • Coolant Temperature • Fuel Level (Optional) • Coolant Level (Optional) |
| Generator protections |
• Over/Under Voltage • Over/Under Frequency • Over Current • Charging Alternator Fault |
| Inputs & Outputs |
• 3 No’s of Configurable Analog Input • 4 No’s of Binary Inputs • 4 No’s Binary Outputs • D + Pre-Excitation Terminal |
| Event & Performance log |
• Gen-set Text Alarm Log • For More Features We Can Use Higher Controller • Engine Hours History Log |
| Prime Power (kVA/kW) | 30 / 24 |
| Standby Power (kVA/kW) | 33 / 26.4 |
| Voltage (V) | 400 / 230 |
| Frequency (Hz) | 50 |
Generator power is based on power factor of 0.8
Prime Power: Variable load. Unlimited hours usage with an average load factor of 80% of the published prime powering over each 24 hour period. A 10% overload is available for 1 hour in every 12 hours.
| Manufacturer | Kubota (Japan) |
| Model | V3300-E2-BG2 |
| Fuel | Diesel |
| Exhaust Emission | – |
| Cooling System | Water |
| Nominal Operating Speed (rpm) | 1500 |
| Displacement (L) | 3.318 |
| Number of cylinders and disposition | 4, inline |
| Aspiration | Naturally Aspirated |
| Power (Continuous) kW (HP) | 25 (33.5) |
| Power (Stand-by) kW (HP) | 27.5 (36.9) |
| Fuel Consumption at 75% PRP (L/h) | 5.37 |
| Fuel Consumption at 100% PRP – g/kWh / (L/h) | 7.15 |
| Governor type | Mechanical |
| Compression ratio | 22.6 |
| Bore & Stroke (mm) | 98 × 110 |
| Electrical system (V) | 12 |
| Lubrication capacity (L) | 13.2 |
| Coolant capacity (L) | 13.2 |
| Open type | Sound proof | |
| Length | 1800 mm | 2250 mm |
| Width | 1000 mm | 1000 mm |
| Height | 1150 mm | 1600 mm |
| Weight (Dry) | 710kg | 1180 mm |
| Fuel tank capacity | 160L | 160L |
| Alternator manufacturer | Leroy-Somer |
| Model | TAL 042 C |
| Power | 32 kVA |
| Insulation class | H |
| Protection grade | IP 23 |
| Voltage regulation system | Electronic, ± 1% |
| Pitch | Two Third |
| Number of Bearings | 1 |
| Number of Leads | 12 |
| Overload Long Term | 110%, 1 hr in 6 |
| Overload 20 seconds | >300% |
| No. of phases | 3 |
| No. of poles | 4 |
| Controller Make/Model | DeepSea PLC DSE4520 |
| Engine protections |
• Oil pressure • Coolant Temperature • Fuel Level (Optional) • Coolant Level (Optional) |
| Generator protections |
• Over/Under Voltage • Over/Under Frequency • Over Current • Charging Alternator Fault |
| Inputs & Outputs |
• 3 No’s of Configurable Analog Input • 4 No’s of Binary Inputs • 4 No’s Binary Outputs • D + Pre-Excitation Terminal |
| Event & Performance log |
• Gen-set Text Alarm Log • For More Features We Can Use Higher Controller • Engine Hours History Log |

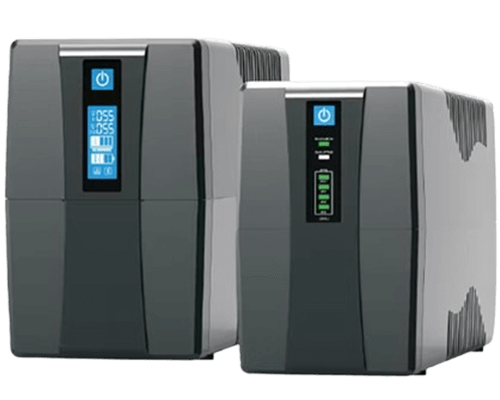

SP UPS is a "Lite" UPS to protect your power issue on personal computers. It provides comprehensive protection in a small and economic package. Not only offering greater comprehensive power protection against surges and spikes, it also provides pure voltage with built-in AVR stabilizer. The UPS will continue providing clean and stable power to connected equipment while its embedded microprocessor controller guarantees high reliability, perfect for any home or small office application.
| Model | PAE-LISB (Smart) Series | ||||
|---|---|---|---|---|---|
| Capacity | 650VA / 390W | 800VA / 480W | 1200VA / 720W | 1500VA / 900W | 2000VA / 1200W |
| INPUT | |||||
| Voltage | 220/230/240 VAC | ||||
| Voltage Range | 145-290 VAC | ||||
| Frequency Range | 60/50 Hz (auto sensing) (Generator Supported) | ||||
| OUTPUT | |||||
| Voltage | 110/120 VAC or 220/230/240 VAC ±10% | ||||
| Waveform (Batt. Mode) | 50Hz or 60Hz ± 1 Hz | ||||
| Transfer Time | Typical 2-8 m/s | ||||
| AC Voltage Regulation | Simulated Sine Wave | ||||
| BATTERY | |||||
| Battery Type & Number | 12 V/7 Ah x 1 | 12 V/9 Ah x 1 | 12 V/7 Ah x 2 | 12 V/7 Ah x 2 | 12 V/9 Ah x 2 |
| Typical Recharge Time | 4 hours up to 90% capacity | ||||
| PROTECTION | |||||
| Full Protection | Overload, short, discharge, and overcharge protection | ||||
| INDICATORS | |||||
| AC Mode | Green lighting | ||||
| Battery Mode | Yellow Light Flashing with Beeр | ||||
| ALARM | |||||
| Battery Mode | Sounding every 10 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding every 0.5 second | ||||
| Fault | Continuously sounding | ||||
| ENVIRONMENT | |||||
| Humidity | 0-90% RH @ 0-40°C (non-condensing) | ||||
| Noise Level | Less than 40dB | ||||
SP UPS is a "Lite" UPS to protect your power issue on personal computers. It provides comprehensive protection in a small and economic package. Not only offering greater comprehensive power protection against surges and spikes, it also provides pure voltage with built-in AVR stabilizer. The UPS will continue providing clean and stable power to connected equipment while its embedded microprocessor controller guarantees high reliability, perfect for any home or small office application.
| Model | PAE-LISB (Smart) Series | ||||
|---|---|---|---|---|---|
| Capacity | 650VA / 390W | 800VA / 480W | 1200VA / 720W | 1500VA / 900W | 2000VA / 1200W |
| INPUT | |||||
| Voltage | 220/230/240 VAC | ||||
| Voltage Range | 145-290 VAC | ||||
| Frequency Range | 60/50 Hz (auto sensing) (Generator Supported) | ||||
| OUTPUT | |||||
| Voltage | 110/120 VAC or 220/230/240 VAC ±10% | ||||
| Waveform (Batt. Mode) | 50Hz or 60Hz ± 1 Hz | ||||
| Transfer Time | Typical 2-8 m/s | ||||
| AC Voltage Regulation | Simulated Sine Wave | ||||
| BATTERY | |||||
| Battery Type & Number | 12 V/7 Ah x 1 | 12 V/9 Ah x 1 | 12 V/7 Ah x 2 | 12 V/7 Ah x 2 | 12 V/9 Ah x 2 |
| Typical Recharge Time | 4 hours up to 90% capacity | ||||
| PROTECTION | |||||
| Full Protection | Overload, short, discharge, and overcharge protection | ||||
| INDICATORS | |||||
| AC Mode | Green lighting | ||||
| Battery Mode | Yellow Light Flashing with Beeр | ||||
| ALARM | |||||
| Battery Mode | Sounding every 10 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding every 0.5 second | ||||
| Fault | Continuously sounding | ||||
| ENVIRONMENT | |||||
| Humidity | 0-90% RH @ 0-40°C (non-condensing) | ||||
| Noise Level | Less than 40dB | ||||
